Hyper-V 2012: Set up Native Teams, Virtual Switch, Binding, and SR-IOV

We have just finished installing Windows Server 2012 Standard on a new Intel Server System R2208GZ4GC. We have added the necessary Roles and Features including Hyper-V.

This particular server comes with a quad port i350 Gigabit adapter built in. We also added an Intel i350-T4 quad port Gigabit adapter into the mix.

With this particular setup we are configuring our NICs as follows:


  1. On board and PCIe Port 0 name: Management
    1. Static Teaming
    2. Address Hash
  2. On board and PCIe Ports 1-3 name: vSwitch
    1. Static Teaming
    2. Hyper-V Port

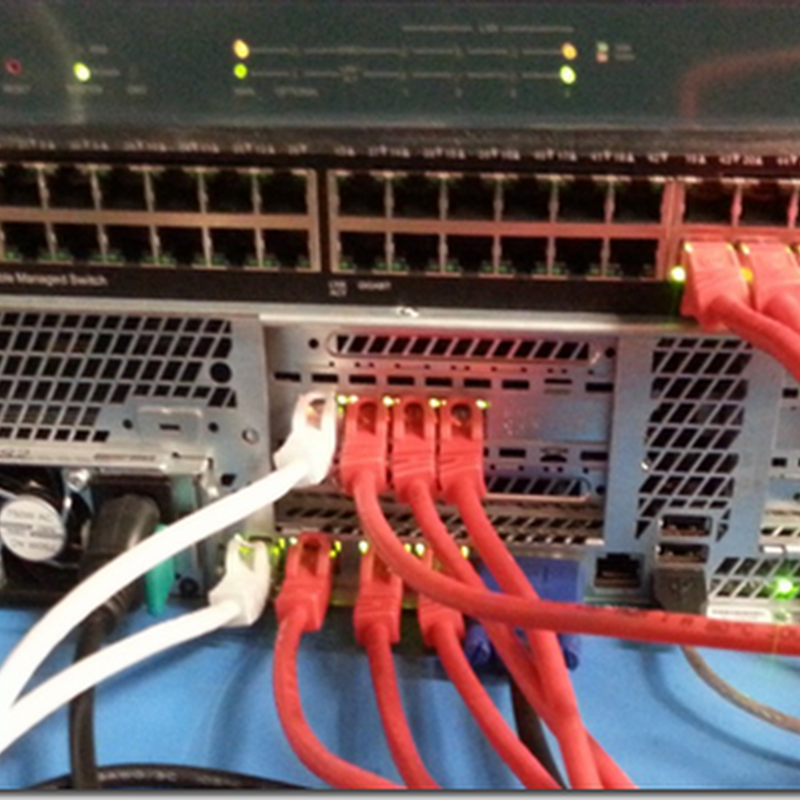

Note the white cables indicating which ports on the NICs and Cisco SG500X-48 to keep track of things. Once relocated to our client’s site our cabling is set up in a similar manner in that cables are colour coded for their roles with a Legend in our audit notes.

Once we have our teaming set up we can move on to creating our virtual switch.

  1. Hit the Start button on the keyboard to bring up the Start Menu
  2. Right click on Hyper-V Manager
    • image
  3. Click on Pin to Taskbar
  4. Hit the Windows key or ESC key to get back to the Desktop.
  5. Right click on Hyper-V Manager icon on the Taskbar
  6. Right click on the Hyper-V Manager shortcut
  7. Left click on Run as Administrator.
  8. Hit Start on the keyboard
  9. Type: NCPA.CPL [Enter]
    • image
    • The Network Connections window will pop up
  10. Note the Device Name for the Management and vSwitch teams.
    1. Microsoft Network Adapter Multiplexor Driver (Management)
    2. Microsoft Network Adapter Multiplexor Driver #2 (vSwitch)
  11. Minimize that window.
  12. In Hyper-V Manager right click on the Server Name and click Virtual Switch Manager...
    • image
  13. Click the Create Virtual Switch button.
  14. Name the virtual switch and choose the NIC to bind to.
    • image
  15. External Network choice is as noted above:
    • Microsoft Network Adapter Multiplexor Driver #2 (vSwitch)
  16. Uncheck Allow management operating system to share this network adapter
  17. Click Apply and OK.
    1. Answer Yes and check the “Don’t bug me” box.
  18. Click OK to close the Virtual Switch Manager.
  19. Bring up the Network Connections window.
    1. Right click on the vSwitch and click on Status
    2. Click on the Details button.
    3. The Network Connection Details window should be blank.
      • image
  20. Click Close and Close again.
  21. While looking at the Network Connections window hit the ALT key on the keyboard.
    • image
  22. Click on Advanced and then Advanced Settings...
  23. Make sure Management is on top of the Connections list in Adapters and Bindings.
    • WRONG:
      • image
    • RIGHT:
      • image
  24. If binding order was changed then a reboot is required.
    1. Hold the WIN key and R (WIN+R):
    2. Shutdown –r –t 0 –f [Enter]
      • image

Once the reboot has completed we are ready to go with our Hyper-V configuration steps. We will leave that for another blog post. :)

Some explanations and caveats with SR-IOV:

UPDATE: Missed this very good post on Hyper-V and SR-IOV:

Philip Elder
MPECS Inc.
Microsoft Small Business Specialists
Co-Author: SBS 2008 Blueprint Book
