Thursday 30 December 2010

SBS 2011 Setup Guide – V1.2.0 Update

Our SBS 2011 Setup Guide has been updated.

We added a link back to a post to create the Group Policy Central store, some restructuring of the steps to bring them closer to our process order, and the addition of an alternate step to have redirected folders on a standalone server.

We will try and remember to bump any of our setup guides when they are updated too.

Thanks for reading!

Philip Elder
MPECS Inc.
Microsoft Small Business Specialists
Co-Author: SBS 2008 Blueprint Book

*Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

Windows Live Writer

SBS 2008 and SBS 2011 Folder Redirection To A Separate Server

Besides tweaking the SBS Folder Redirection Policy to point to the standalone server and the share that will be used as base for the user’s root redirected folder, we need to make sure that the permissions on the base folder are set properly before things start to work.

Unfortunately the base NTFS permission set that the SBS server sets to its own folder redirection share will not work when we are dealing with a separate server.

So, what we need to do is the following:

  • CREATOR OWNER
    • Subfolders and files only: FULL
    • image
  • Domain Users
    • Add: Create Folders/Append Data to the default permissions set
    • image
    • image

With those permissions set at the NTFS (Share = Everybody: FULL) folder redirection should work without a hitch.

Philip Elder
MPECS Inc.
Microsoft Small Business Specialists
Co-Author: SBS 2008 Blueprint Book

*Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

Windows Live Writer

Wednesday 29 December 2010

CaseWare and SMB2 Update – Install A Hotfix

A while back we indicated that we had started to disable the SMB2 protocol at accounting firm sites due to file corruption issues.

CaseWare’s KB on the subject has been updated:

From the updated KB Update on file corruption when using Windows Vista/Window 7 or Windows Server 2008/Windows Server 2008 R2 with SMB2:

We recommend that clients working in this environment install the hotfix (documented here: http://support.microsoft.com/kb/2028965), to limit their exposure to file corruption.

If you require assistance implementing the hotfix, please contact our support department for assistance.

Windows 7

Microsoft has acknowledged that data corruption can occur when multiple users perform read and write operations to a shared file in the SMB2 environment. Microsoft has issued a hotfix (mentioned above) which we have tested on Windows 7 workstations and confirmed that the potential for corruption no longer occurs. As long as the hotfix has been applied to all Windows 7 workstations running Working Papers, and there are no Vista workstations accessing Working Papers engagements, SMB2 can be enabled.

Windows Vista, Windows Server 2008/Windows Server 2008 R2-based Terminal/Citrix Servers running CaseWare® Working Papers

The hotfix outlined above has reduced the potential for file corruption for Windows Vista and Windows Server 2008/Windows Server 2008 R2-based Terminal/Citrix servers running CaseWare Working Papers environments. However, we have still noticed crashes of our application even with the hotfix applied.

Microsoft has acknowledged that SMB2 may cause problems with applications that require our level of performance/access to data files and have recently provided a number of possible recommendations. We are in the process of testing these recommendations to confirm whether they address the Working Papers corruption issues in these additional environments.

We expect to provide an update for Windows Vista and Windows Server 2008/Windows Server 2008 R2-based Terminal/Citrix Servers running CaseWare Working Papers environments in early January. Until that time, we still recommend disabling SMB2 for these environments to avoid any potential data corruption.

Note the exception for the server OSs as well as Windows Vista.

This looks to be a client based hotfix at this time, so we will start updating the problematic Windows 7 machines and wait to see what CaseWare has to say in January.

Here is a direct link to the Request Page:

A link has been placed in our Hotfix Quick Links in the left hand column of the blog for later access.

Philip Elder
MPECS Inc.
Microsoft Small Business Specialists
Co-Author: SBS 2008 Blueprint Book

*Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

Windows Live Writer

Partition Recovery Tool – Active@ Partition Recovery

This little tool may come in handy for those times when a partition just mysteriously disappears after a server or workstation reboot.


Cost wise it is very reasonable for us to use here in the shop for any hard drive boot record work.

Hat Tip: Boon Tee

Philip Elder
MPECS Inc.
Microsoft Small Business Specialists
Co-Author: SBS 2008 Blueprint Book

*Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

Windows Live Writer

Friday 24 December 2010

SBS 2011 Setup Guide – v1.1.0 Update

Our SBS 2011 Setup Guide has been updated to reflect some issues with installing the OS into a VM along with some additional tweaks.

Thanks for reading!

Philip Elder
MPECS Inc.
Microsoft Small Business Specialists
Co-Author: SBS 2008 Blueprint Book

*Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

Windows Live Writer

SBS 2011 – Installing The OS Into A VM – Time

There seems to be a bit of a caveat when it comes to installing SBS 2011 into a VM on Hyper-V with regards to the VM picking up the proper time during the initial OS install.

We found that once the OS had finished installing both the time and time zones were not correct despite the time zone being set within the Answer File.

To mitigate any timing problems when installing the OS into a VM we can either:

  1. Enable Time Synchronization in the VM’s Hyper-V Integration Settings temporarily.
    • Make sure to disable Time Synchronization once SBS shows its successful install screen.
    • This allows the VM to have its time correctly synchronized with the host’s clock.
  2. SHFT+F10 after the initial reboots and set the time using the command prompt.
    • image

If the VM OS install is being done in Migration Mode then any time mismatches between the source and destination servers will cause a total loss of the SBS 2011 install resulting in the need to step back on the source server.

Philip Elder
MPECS Inc.
Microsoft Small Business Specialists
Co-Author: SBS 2008 Blueprint Book

*Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

Windows Live Writer

Merry Christmas, Happy Hanukkah, and Happy Holidays!

Our family will be celebrating Christmas over the next 12 days or so.

And, our schedule will be fairly relaxed as projects we had lined up have been moved into January. It will be nice to actually not have to run around working a number of projects this year! :)

Have a safe and wonderful Christmas, a happy Hanukkah, and Happy Holidays!

Philip Elder
MPECS Inc.
Microsoft Small Business Specialists
Co-Author: SBS 2008 Blueprint Book

*Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

Windows Live Writer

SBS 2003 to SBS 2011 Microsoft Migration White Paper on TechNet

Microsoft’s migration story for SBS 2011 can be found at this landing page:


The first live link on the site is for the SBS 2003 to SBS 2011 migration process.

We have already run the migration steps once through when we migrated our own SBS 2003 R2 Premium domain to an early release of the SBS v7 bits. For the most part things were fairly straight forward relative to our SBS 2003 to SBS 2008 migration guide.

We will be releasing an updated version of the Migration Guide for this process too as Exchange 2010 introduces a few nuances in the process.

Philip Elder
MPECS Inc.
Microsoft Small Business Specialists
Co-Author: SBS 2008 Blueprint Book

*Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

Windows Live Writer

Wednesday 22 December 2010

Not All UPSs Are Created Equal – Surge Let-Through

As Chris Knight pointed out in a comment on our post on a failed APC BR1500LCD and both power supplies in an SC5295BRP chassis, the Surge Let-Through value is a very important one when it comes to determining what UPS needs to be put in front of expensive and critical IT equipment.

So, here we have three APC UPS products set up in an online comparison on APC’s site:


  • APC Smart-UPS 1000VA SMT1000RM2U $559.00
  • APC Smart-UPS 1500VA SUA1500RM2U $719.00
  • APC Smart-UPS 1500VA SMX1500RM2U $779.00
  • Now, out of the above units, which unit or units would have a better Surge Let-Through number?

    The answer was actually a bit surprising:


  • APC Smart-UPS 1000VA SMT1000RM2U 0.3%
  • APC Smart-UPS 1500VA SUA1500RM2U 0.3%
  • APC Smart-UPS 1500VA SMX1500RM2U 5.0%
  • What caught us off guard was the fact that it was the most expensive unit that had the lesser surge let-through rating.

    Now, considering that the BR1500LCD unit also shares in the 5% rating, if we had the SMX1500RM2U in its place we probably still would have had two blown power supplies.

    Thanks to Chris, we will be paying a lot more attention to that rating on any of the UPSs we supply our clients or purchase for our own use.

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    Remote Desktop Connection Manager – Multiple RDP Sessions Managed Easily

    This is a pretty kewl utility:


    We can set up all of the servers and desktops that we manage on a regular basis in the Connection Manager and have quick and easy access to them.

    The RDCM can store credentials as well so we will only allow that to happen on workstations or laptops that are BitLocker enabled.

    Hat Tip: Jason Miller

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    Tuesday 21 December 2010

    Primary A/C Breaker Fail – APC BR1500LCD and Intel SC5299BRP Dual PSU Fail

    One of our clients had a primary breaker pop on Friday last week when an appliance was turned on while someone was running an oven’s self-clean cycle.

    When the power failed it somehow managed to kill the APC BR1500LCD UPS protecting the server. The end result of the UPS being taken out was that both power supplies in the redundant PSU setup also failed.

    The server was configured as follows:

    • Intel Xeon X3220 Series CPU
    • Intel S3210SHLX Server Board
    • 4GB RAM
    • Intel RAID Controller SRCSASRB + BBU
    • 500GB Seagate ES series drives in dual RAID 1 arrays.
    • Intel SC5299BRP with both PSUs.

    Intel sent out a pair of replacement PSUs which fired up the hardware with no issues.

    The BR1500LCD’s onboard display normally shows about 20 to 30 minutes of runtime on any given day. It now reads 1 minute so it will also be replaced.

    We were fortunate that the spontaneous shutdown of SBS 2003 R2 Premium with ISA installed did not in some way mess up Exchange or Active Directory.

    We ran a few reboot cycles and an update cycle checking to make sure that the Exchange database was happy in between each cycle which it was. We had their ShadowProtect backup on standby if there was a need to recover the server.

    The final reboot happened in about 1/3 the time the first boot up after plugging in the new PSUs did. We will be keeping a close eye on this box to make sure everything stays happy.

    It just goes to show that even with a good UPS in front of a system that includes line levelling that there are no guarantees.

    Nothing replaces having a good backup that is known to recover without issues. The stress levels are so much lower when we know we have a fall back in the midst of a server down situation.

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    Monday 20 December 2010

    Windows Small Business Server 7(2011), Configuring Beta Exam Now Available

    The new Beta exam for SBS 2011 is now available to be taken:

    We jumped onto Prometric’s site to find out what availability will be for the Edmonton site here:


    We ran through the steps to find that the exam does indeed show as available:


    After clicking next we found two locations:


    But, neither of the sites had anything showing as available:


    So, we called into Prometric at 1-800-853-6769 to find out if they could give us at least a timeline as to when the exam would be available here. They could not.

    In their online system we went back into the system and chose the next closest location which is in Red Deer Alberta at about 150KM (100 miles) away.

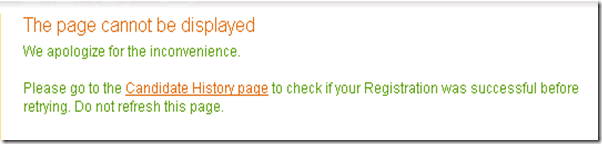

    The registration system did not seem to respond to any of our queries. The person we spoke with at Prometric stayed on the phone to see if the system would start behaving for us while we were logged in. It did not behave so they initiated an internal trouble ticket.


    We will try again later and then tomorrow to see if we can indeed get registered for the exam.

    Hat Tip: Susan Bradley via the SBS2K Yahoo Group.

    UPDATE: The registration system came back online and accepted a date in Red Deer for the first week in January. We will keep a eye on the Edmonton sites to see if they have any seats go live just in case.

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    Legacy Taxprep T1, T2, and T3 Apps on Windows XP Mode

    Now that many of our accounting firm clients are moving over to Windows 7 as the primary desktop operating system we have run into a roadblock of sorts with the legacy versions of Taxprep’s accounting applications.

    That roadblock has to do with running any legacy version of Taxprep on a Windows 7 machine whether we install it locally or try and run it via a network install. The older the version of Taxprep the less likely we can shoehorn it into Windows 7 and it will fail to run.

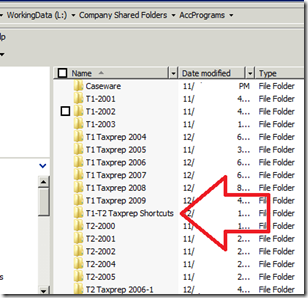

    So, to mitigate this we created a folder that we keep in the network install location:


    In that folder is a set of shortcuts to the network versions of the Taxprep applications:


    We drop a copy of that folder of shortcuts into the following location in the Windows XP Mode VM:


    Once Windows 7 has picked up on the new folder we place a shortcut to it on the user’s Windows 7 desktop.

    They can then run whatever Taxprep version they need to via XP Mode.

    Another option may be Microsoft’s App-V though some of our accounting firm clients do not have the required licensing in place yet.

    In the rare case where a partner wants to have access to those legacy programs while outside of the main office we will install the legacy versions directly into the Windows XP Mode VM and place the shortcuts into a folder on their desktop.

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    Windows 2008 R2 Web – .NET Install Error –You must use the Role Management Tool

    We are trying to get .NET 3.5 SP1 installed on a Windows Web Server 2008 R2 clustered VM.

    When we tried to run the full version of the install file we received the following error:


    Microsoft .NET Framework 3.5 SP1 Setup

    You must use the Role Management Tool to install or configure Microsoft .NET Framework 3.5 SP1.

    However, when we open the Add Role Services wizard on the server .NET 3.5 is nowhere to be seen.

    A quick search turned up the answer on an MSDN blog:

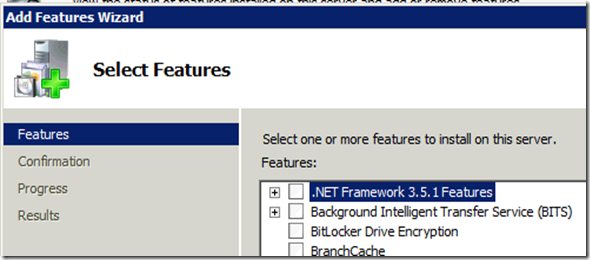

    Vijay points out that .NET 3.5 will be found under the Features install.

    Indeed, there it was:


    We selected the root check box and away we went.


    Note that once .NET v3.5 is installed some of the updates that will follow will require reboots of the server.


    Our Web server VM is now ready for an LoB that required .NET 3.5.

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    Windows XP Mode – Boot From An ISO Instead Of XP

    We set up a user’s Windows XP Mode a while back, ran updates and left it until it was needed.

    One thing we neglected to do was to keep a record of the XPMUser local admin account.

    Now, the setup process for Windows XP Mode takes a fair amount of time, so we dropped an ISO of ERD Commander onto the machine (our clients have MDOP) and hooked it into the Windows XP Mode VM.

    One catch however was this: How do we boot from that ISO?

    The answer was found after some searching here:

    Essentially, we disable the Integration Features in the VM’s settings, reboot, and hit the DEL key until we get into the VM’s vBIOS. We can then change the boot order for the task at hand, make the password change, and set things back once into the OS.


    Total time spent was about 5-10 minutes.

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    Sunday 19 December 2010

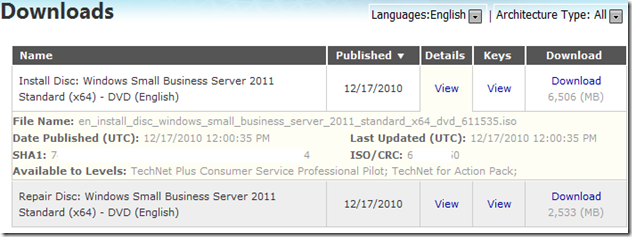

    Correction – SBS 2011 RTM via TechNet is Microsoft Action Pack TechNet

    It seems that the links to the SBS 2011 download does not become active unless the organization has the Microsoft Action Pack Subscription with TechNet add-on or something called TechNet Plus Consumer Service Professional Pilot.


    Now, there may be another caveat involved in that we are Microsoft Small Business Specialists as well and we are not sure if a standard MAPS subscriber will have access or if only SBSC based MAPS subscribers would.

    Our previous post was not quite in line with the above.

    Our apologies for any confusion our post may have caused.

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    Friday 17 December 2010

    AOpen S145A Mini-ITX Chassis – Total Fail

    We just replaced the last of the AOpen S145A Mini-ITX chassis that we deployed not too long ago. The call from our client was a little disconcerting since they heard a big popping noise from the computer’s area and a smell of something burning.

    Fortunately they pulled the plug right away. We ended up pulling everything out of that chassis and dropping it into an Antec Minuet 350 and the board and hard drive came up unscathed.

    Our only supplier that had carried this product no longer does so we have no recourse for any RMA.

    AOpen has not been helpful at all even when we requested them to ship us replacement power supplies at our cost.

    This situation is unfortunate, and a reminder of our past bad experiences with AOpen motherboards back when, and leads us to avoid any AOpen branded products if we can help it.

    The RMA situation may be a bit different for folks in the US or other geographical regions.

    However, the cost of replacing all of those units with an In-Win or Antec product has been quite significant. Even if we had recourse to some sort of RMA procedure the costs associated with this situation would have been quite high for both our clients and us.

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    SBS 2011 RTM Is Now On TechNet

    UPDATE: This download is only available for MAPS subscribers along with one other TechNet access type.

    Need the bits for SBS 2011 RTM?

    Get them here: Microsoft TechNet.


    Of course, a valid subscription is required! :)

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    Tuesday 14 December 2010

    SBS 2011 Setup – Do We Install The Distributed Scan Server Role?

    As we are going along in the set up process of a new SBS 2011 VM we are discovering a number of new features that are enabled either in the base Windows 2008 R2 OS, or other components installed on SBS.

    We are at the step in our setup guide, soon to be published for SBS 2011, where we install the Print Services Role on the server.


    One of the options for installation with this role is the Distributed Scan Server role.

    A bit of digging turned up the following:

    Quoting from the above article:

    Scan Management. This snap-in enables you to manage scanners and scan processes. Scan processes allow you to define how to process scanned documents, and then route them to network folders, SharePoint sites, and to e-mail recipients.

    ImportantImportant

    The Distributed Scan Server role requires scanners that support Distributed Scan Management (DSM). Windows Server 2008 R2 implements DSM and uses Web Services on Devices (WSD) technologies to integrate scanning devices into the system. As of October, 2010 there are no scanners available on the market that support DSM (emphasis ours). However, scanners that support DSM are expected in the future. For more information about DSM see Distributed Scan Management (DSM) in the MSDN Technical Library at http://go.microsoft.com/fwlink/?LinkId=204841.

    What does that mean?

    Well, since there are no devices supporting this service we will not be installing that role until we see our clients purchasing copiers or MFPs that support it.

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    SBS 2011 Error – WBCommandletInBuiltTracing failed to start 0xC0000035

    On this newly minted SBS 2011 RTM VM we have the following error:


    Log Name:      Microsoft-Windows-Kernel-EventTracing/Admin
    Source:        Microsoft-Windows-Kernel-EventTracing
    Date:          12/14/2010 8:34:13 AM
    Event ID:      2
    Task Category: Session
    Level:         Error
    Keywords:      Session
    User:          DOMAIN\DomainAdmin
    Computer:      SBS.DOMAIN.local
    Description:
    Session "WBCommandletInBuiltTracing" failed to start with the following error: 0xC0000035

    And, according to the SBS 2011 Release Notes this is a known issue though not a show stopper:


    Again, it is a good idea to check out the SBS 2011 Release Notes to be aware of any hiccups or other situations with the operating system so that nothing comes as a surprise.

    UPDATE: After the image capture blunder, that domain is now toast.

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    SBS 2011 – First RTM Bits Install

    We just completed our first Answer File based install of the SBS 2011 RTM (Gold) bits:


    The base install of the OS took up about 30GB:


    The new SBS 2011 Console:


    The cosmetic differences are certainly noticeable. But the functionality remains essentially the same.

    The out of the box SBS Native Tools Console that we use a lot:


    The screenshots are from a server VM that we are putting into production for a new hosted SBS client. We will be running a migration for an existing client from SBS 2003 this coming week and also migrating our own SBS v7 bits to the new SBS 2011 OS as soon as we can.

    Make sure to check out the Release Notes as there are some install caveats that need to be known like WSUS taking anywhere up to 24 hours to synchronize when SBS 2011 is installed into a Hyper-V VM.

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    Monday 13 December 2010

    Office 2007 Error – OutOfBoundsIndex And Office64WW.xml

    We are trying to get Office 2007 installed on that standalone server that we installed BESx on (BlackBerry label) a little while back.

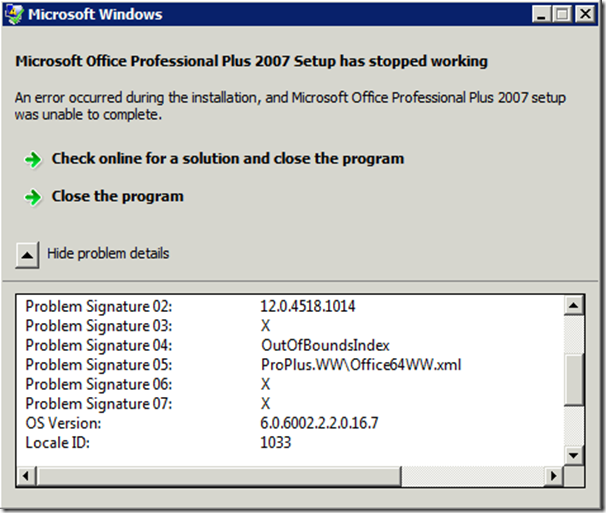

    Microsoft Office Professional Plus 2007 Setup has stopped working.

    An error occurred during the installation, and Microsoft Office Professional Plus 2007 setup was unable to complete.

    . . . OutOfBoundsIndex
    ProPlus.WW\Office64WW.xml

    The Check online button does nothing to bring up any possibilities for a fix.

    In the Remote Desktop Services server’s event logs we found:

    Log Name:      Application
    Source:        Microsoft Office 12
    Date:          12/13/2010 10:55:32 AM
    Event ID:      5000
    Task Category: None
    Level:         Information
    Keywords:      Classic
    User:          N/A
    Computer:      TS-01.domain.local
    Description:
    The description for Event ID 5000 from source Microsoft Office 12 cannot be found. Either the component that raises this event is not installed on your local computer or the installation is corrupted. You can install or repair the component on the local computer.

    If the event originated on another computer, the display information had to be saved with the event.

    The following information was included with the event:

    Office12Setup
    {10120000-0F00-0000-0000--0000000FF1CE}
    12.0.4518.1014
    X
    OutOfBoundsIndex
    ProPlus.WW\Office64WW.xml

    Searching for OutOfBoundsIndex (Bing search) brings up a lot of links to the _same_ forum support request on other forums which does not include an option.

    After sifting through the above search results we came upon this forum post:

    That post lead us to this one:

    In this post we found the answer to our install problem.

    Since this particular server had Office 2007 installed and running in Remote Desktop Services (Terminal Services) prior to the BlackBerry Enterprise Express install, we had uninstalled it prior to running the BESx install routine.

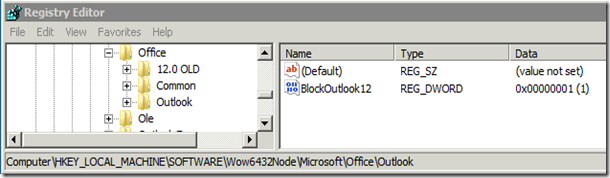

    Once BESx and the extra Microsoft components had been installed a block was set into the registry to not allow Outlook to be installed on the same machine.


    BlockOutlook12: 1

    Well, we need Office for Word and Excel without Outlook.

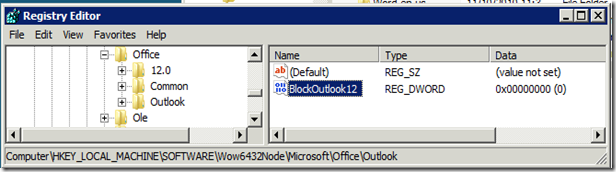

    So, we edited the registry as follows:


    BlockOutlook12: 0

    We reran Office setup and it again failed.

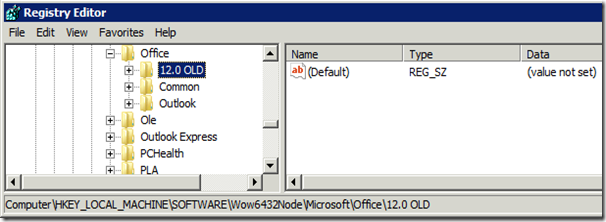

    So, we went ahead and renamed the registry keys mentioned:

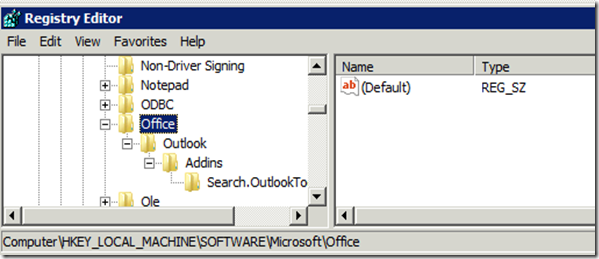

    However, the key did not exist in the second location:

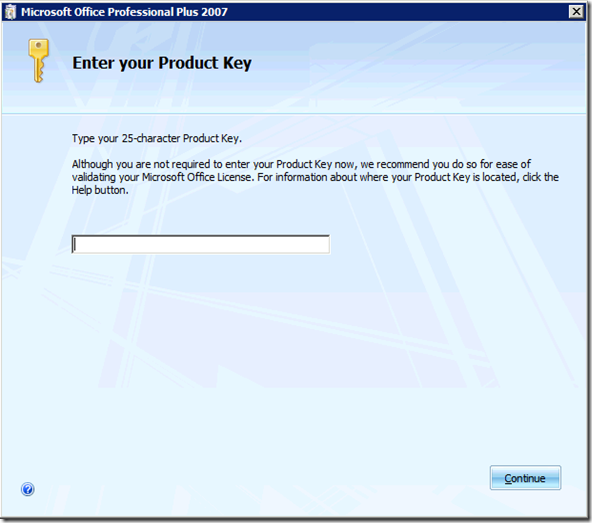

    We then ran the Office setup and were greeted with:


    So, we entered our key and set the following for Installation Options:

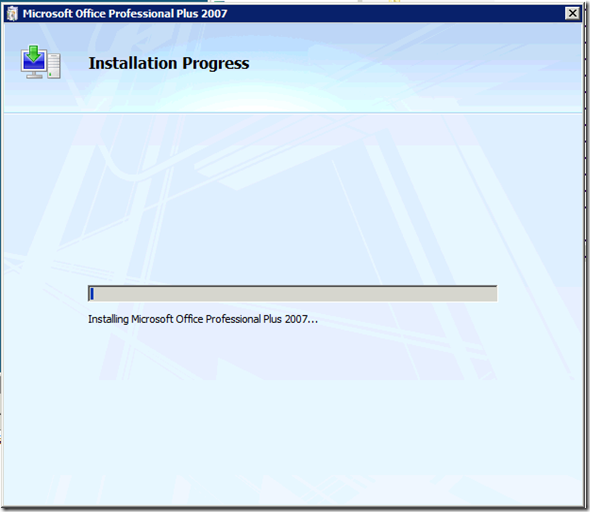

    After clicking the Install Now:

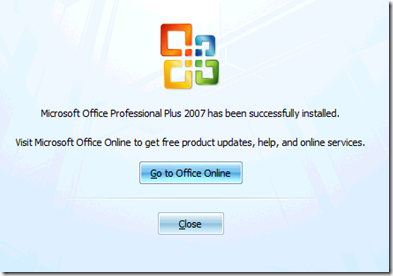

    And finally:

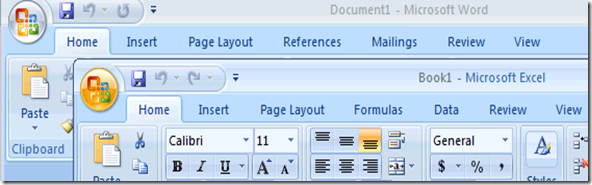

    We then ran Word and Excel to make sure they fired up as expected:

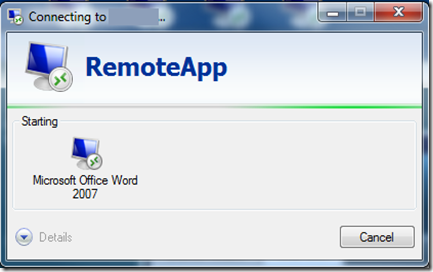

    The final step was to verify that they were being properly served by TS RemoteApps:

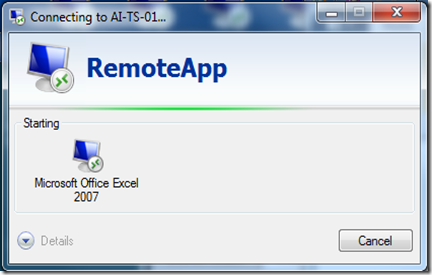

    And:


    Good to go!

    We now know how to get RDS/TS and Office back onto a standalone server running BlackBerry Enterprise Server Express.

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    eFileCabinet Error – The physical directory for this drawer is missing . . .

    We are working with one of our American accounting firms on upgrading a product called eFileCabinet.

    It is a document management system that offers content encryption, search, open, and modify from within the client.

    We set up the product on their SBS 2008 server about 20 months ago. Upgrading the product was quite cumbersome so we left things alone until now. The product was starting to mess up on keeping track of the various folders it was supposed to be managing.


    Server Error

    The physical directory for this drawer is missing or is no longer accessible from the server. Please contact support.

    Now, we ended up running through a number of steps to update the existing version with the above error message being the end result when a user would try and open something within the eFileCabinet client.

    When we contacted support, which has been excellent BTW, we figured out that the v4 install/upgrade had switched the service’s log on credentials from the restricted AD user we created to NETWORK SERVICE. Once we switched the eFileCabinet service back to the AD user, restarted the eFC service we had a functioning eFC client.

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    TechNet: Microsoft Windows Small Business Server 2011

    We now have a new TechNet library site for SBS 2011:


    Note that the Support and Troubleshooting link has not gone live yet.

    SBS 2011 Standard version along with all SBS related products will have Windows Small Business Server 2011 Premium Add-On SKU (near the bottom) for the additional Windows Server 2008 R2 Standard OS and SQL 2008 R2 Standard. Given that there was a separate SKU set for SBS 2008 Premium CALs, we can expect that the same will apply for this new Add-On SKU.

    Hat Tip: Susan Bradley

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    Friday 10 December 2010

    Thank You For Choosing Shaw – 15Mbit Extreme

    A number of years ago, well before MPECS Inc. was conceived, we had an ISP connection that was cable based and was extremely fast for the day. Then along came Shaw.

    Since things went sour back then Shaw has come _a long way_ to bringing both their services and their customer service levels up. Since we have a few clients that are fortunate enough to have cable access in their businesses we have had our fair share of working with Shaw over the years. Thus we were able to see the improvement in their services and customer service firsthand.

    So, as of today we switched out our home 3Mbit DSL connection for a Shaw Extreme 15Mbit connection and boy oh boy is there a tangible difference in the way our Internet runs here:


    That is 1.29MB/Second with the rate bouncing up and down between 1.56MB/Sec and 1.24MB/Sec. The download is a test download of Windows XP Mode from Microsoft.

    This is a Call of Duty: United Offensive demo game download from Activision.com:


    This one bounced around between 2.30MB/Sec down through 1.84MB/Sec with it settling in at close to the 2MB/Sec mark.

    Now, this is all fine and dandy since the time here is just around when kids will be coming home from school. Since cable Internet is a shared pipe, the real test of the new setup will be to run the above download tests during “peak” usage times to see if we still have those speeds.

    With speeds like this, ADSL service seems almost stone age at 6Mbit . . . though one of our local DSL providers has just started offering 15Mbit speeds.

    And one more thing, with a Windows Home Server sitting on our network beside our old SBS 2003 R2 box there are no issues with Shaw’s dynamic IP as our homeserver.com DNS has already changed to the new IP address.

    Our home network is a prime candidate for Microsoft’s new SBS 2011 Essentials “Aurora” product when it RTMs. This is because our local Outlook clients here connect to our company’s Exchange servers instead of the local SBS 2003 R2 Exchange 2003 to keep things simple. Monique and I share calendars, task lists, contacts, and more via Outlook and Public Folders.

    We will probably end up running SBS 2011 Essentials on one of HP’s new MicrosServers or maybe building a small box to run the OS. We have not had any time to test the product in its beta form yet.

    UPDATE: I managed to finger fumble publish the post in WLW.

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer

    Thursday 9 December 2010

    Upgrading HP LaserJet’s Firmware via Windows Explorer

    Download the newest firmware from HP’s site for the printer in question.

    Open the firmware’s folder and extract the firmware.

    Open a second Explorer Window and type ftp://192.168.40.5 (printer’s IP) and hit Enter. Double click on the PORT folder to open it.

    Copy and past the .RFU file from the network folder to the FTP based folder.


    The display on the front of the printer will display “Receiving Upgrade”. Once done the printer will reboot itself and show Ready.

    On the printer’s management site we should then see the new firmware version displayed:


    HP has come a long way from connecting either a parallel or USB cable and uploading the firmware file by a series of commands.

    Philip Elder
    MPECS Inc.
    Microsoft Small Business Specialists
    Co-Author: SBS 2008 Blueprint Book

    *Our original iMac was stolen (previous blog post). We now have a new MacBook Pro courtesy of Vlad Mazek, owner of OWN.

    Windows Live Writer
